Delta - 664 - Four Colour |
 |
|
| |

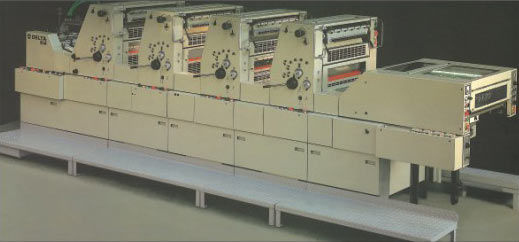

- The DELTA - 664 is a four - colour sheet - fed offset press. It has facilities for printing of four colours in single - sided printing or alternatively, printing both sides in one pass after adjusting the perfecting mechanisms.(Optional)
- The Maximum machine speed of 10,000 i.p.h. is achievable even when perfecting.
- The Press has excellent register parameters in single sided printing and perfecting, which allows for high quality multicolour printing on a wide range of stocks, up to 485 � 660 mm in sheet size.
- According to customer requirements, the turning arrangement can be located behind the first or second printing unit.
- A series of press fuctions are governed by automatic electronic controls. Mainly in the passage of the paper through the press, in the impression engaging mechanism, the dampening system, and the inking unit.
- The press has a high pile delivery with a maximum pile height of 820 mm.
- The press display unit has signal lamps, which improve machine productivity and reduce operator effort.
- The standard equipment of press includes a Sheet Decurler and anti set - off Powder Spray Unit.
|
| |
|
| HIGH PILE DELIVERY |
|
Requirement of Electric Motors |
|
| |
| Maximum sheet size |
485 × 660 mm |
| Miniimum sheet size |
310 � 330 mm |
| -With perfecting facility |
330× 330 mm |
| Maximum printing area |
475 � 650 mm |
| Weight of paper |
30 - 350 g/m² |
| Max. Paper thickness |
0.45 mm |
| Pile height in feeder |
980 mm |
| Pile height on delivery |
820 mm |
| Offset Plate size |
0.3 × 530 × 650 mm |
| Blanket size |
1.9 × 560 × 664 mm |
| Max. Printing speed |
10,000 i.p.h. |
| Min. Printing speed |
3,000 i.p.h. |
|
|
| Main drive |
11 kw |
| Compressor |
2.2 kw |
| Air Blower |
0.75 kw |
| Feeder |
0.37 kw |
| Delivery Motor |
0.75 kw |
| Others |
2.6 kw |
| Powder Spray |
0.25 kw |
|
| |
Dimensions of machine |
|
| |
| Length |
5,650 mm |
| Width (Incl. Walkways) |
2,250 mm |
| Height |
1,700 mm |
| Weight of machine |
7,300 kg. |
|
|
| |
|
|
| |
|
|
|
|
| |
|
|
|
|
