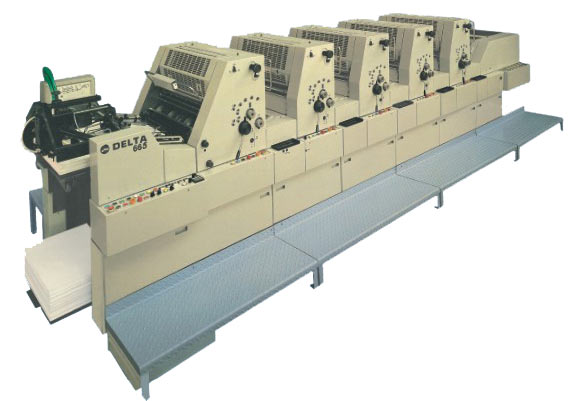

Delta - 665 - Five Colour |
 |
|
| |
- The DELTA - 665 is a five - colour sheet - fed offset press which prints five colours in single - sided printing. Alternatively, it prints four colours on one side and one colour on the other. (Optional)
- The Maximum machine speed is 10,000 i.p.h. and this is achievable even when perfecting.
- The Press has excellent in single sided printing and perfecting, which allows high quality multicolour printing an a wide range of stocks, up to 485 � 660 mm in sheet size.
- A series of press functions are governed by automatic electronic control, mainly in the passage of the paper through the press in the dampening system, in the linking unit in engaging impression.
- Equipped with a high pile delivery, the press has a maximum pile height of 820 mm.
- The standard equipment of the press includes a sheet Decurler and anti Set - off Powder Spray unit.
- The press display unit has signal lamps, which reduce operator effort and improve machine productivity
- Operator safety is enhanced by positive protction of rotating mechanism and guards on the press.
|
| |
|
| HIGH PILE DELIVERY |
|
Requirement of Electric Motors |
|
| |
| Maximum sheet size |
485 × 660 mm |
| Miniimum sheet size |
310 � 330 mm |
| -With perfecting facility |
330× 330 mm |
| Maximum printing area |
475 � 650 mm |
| Weight of paper |
30 - 350 g/m² |
| Max. Paper thickness |
0.45 mm |
| Pile height in feeder |
980 mm |
| Pile height on delivery |
820 mm |
| Offset Plate size |
0.3 × 530 × 650 mm |
| Blanket size |
1.9 × 560 × 664 mm |
| Max. Printing speed |
10,000 i.p.h. |
| Min. Printing speed |
3,000 i.p.h. |
|
|
| Main drive |
7.5 kw |
| Compressor |
2.2 kw |
| Air Blower |
0.75 kw |
| Feeder |
0.37 kw |
| Delivery Motor |
0.75 kw |
| Anti set - off Powder Spray |
0.25 kw |
| Others |
2.5 kw |
|
| |
Dimensions of machine |
|
| |
| Length |
6,500 mm |
| Width (Incl. Walkways) |
2,250 mm |
| Height |
1,700 mm |
| Weight of machine |
8,700 kg. |
|
|
| |
|
| |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
| |
|
|
|
|
